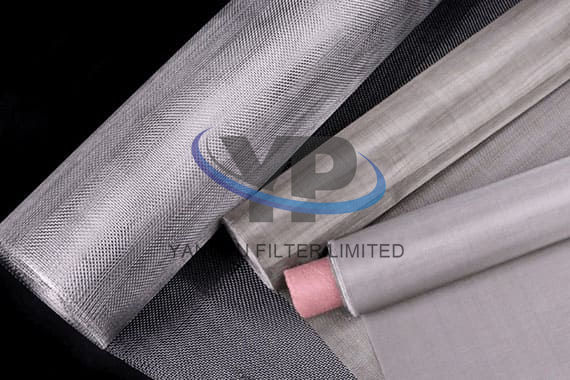

Stainless Steel Wire Mesh

Type 304 generally refers to "18-8"(18% chromium, 8% nickel) most of the basic stainless steel alloy, very suitable for mesh. It can be exposed to the outdoors and will not rust or oxidize when the outside temperature rises to 1400 degrees Fahrenheit.

The 304L is very similar to the T-304, but the difference is that the carbon content is reduced and it is more conducive to weaving and rewelding.

Send Inquiry

Product Introduction

Material: 304 304L 316 316L.

Weaving: flat weave, diagonal weave, (plain/twill) mat weave.

Number of mesh: 1 -2800 mesh.

The 304L is very similar to the T-304, but the difference is that the carbon content is reduced and it is more conducive to weaving and rewelding.

Type 316 can be stabilized by adding 2% molybdenum, and T-316 is an "18-8" alloy. It is less susceptible to corrosion in brine, sulfurous water or halide salts than other chrome-nickel stainless steels. Chloride, for example, is an obvious example. The most valuable feature of the T-316 is that it has a stronger creep resistance at rising temperatures. Other mechanical and structural characteristics are the same as T-304.

The 316L is very similar to the T-316, but the difference is that the carbon content is reduced and it is more conducive to weaving and rewelding.

Performance: acid resistance, alkali resistance, high temperature resistance, tension and wear resistance.

Uses: Stainless steel wire mesh and stainless steel cloth are widely used in acid and alkali environmental conditions for screening and filtration, petroleum industry for mud mesh, chemical fiber industry for screening mesh, environmental protection, mining, aviation field, paper industry, electronics, metallurgy, electroplating industry for pickling mesh and so on. The company can design and produce various models of products according to the needs of users, and the size and specifications can be determined according to the special requirements of customers.

Mesh number	Wire diameter		aperture		Opening area	Net weight (LBS)/100 sq. ft
Mesh number	inches	millimeter	inches	millimeter	Opening area	Net weight (LBS)/100 sq. ft
1x1	0.08	2.03	0.92	23.37	84.6	41.1
2X2	0.063	1.6	0.437	11.1	76.4	51.2
3X3	0.054	1.37	0.279	7.09	70.1	56.7
4X4	0.063	1.6	0.187	4.75	56	104.8
4X4	0.047	1.19	0.203	5.16	65.9	57.6
5X5	0.041	1.04	0.159	4.04	63.2	54.9
6X6	0.035	0.89	0.132	3.35	62.7	48.1
8X8	0.028	0.71	0.097	2.46	60.2	41.1
10X10	0.025	0.64	0.075	1.91	56.3	41.2
10X10	0.02	0.51	0.08	2.03	64	26.1
12X12	0.023	0.584	0.06	1.52	51.8	42.2
12X12	0.02	0.508	0.063	1.6	57.2	31.6
14X14	0.023	0.584	0.048	1.22	45.2	49.8
14X14	0.02	0.508	0.051	1.3	51	37.2
16X16	0.018	0.457	0.0445	1.13	50.7	34.5
18X18	0.017	0.432	0.0386	0.98	48.3	34.8
20X20	0.02	0.508	0.03	0.76	36	55.2
20X20	0.016	0.406	0.034	0.86	46.2	34.4
24X24	0.014	0.356	0.0277	0.7	44.2	31.8
30X30	0.013	0.33	0.0203	0.52	37.1	34.8
30X30	0.012	0.305	0.0213	0.54	40.8	29.4
30X30	0.009	0.229	0.0243	0.62	53.1	16.1
35X35	0.011	0.279	0.0176	0.45	37.9	29
40X40	0.01	0.254	0.015	0.38	36	27.6
50X50	0.009	0.229	0.011	0.28	30.3	28.4
50X50	0.008	0.203	0.012	0.31	36	22.1
60X60	0.0075	0.191	0.0092	0.23	30.5	23.7
60X60	0.007	0.178	0.0097	0.25	33.9	20.4
70X70	0.0065	0.165	0.0078	0.2	29.8	20.8
80X80	0.0065	0.165	0.006	0.15	23	23.2
80X80	0.0055	0.14	0.007	0.18	31.4	16.9
90X90	0.005	0.127	0.0061	0.16	30.1	15.8
100X100	0.0045	0.114	0.0055	0.14	30.3	14.2
100X100	0.004	0.102	0.006	0.15	36	11
100X100	0.0035	0.089	0.0065	0.17	42.3	8.3
110X110	0.004	0.1016	0.0051	0.1295	30.7	12.4
120X120	0.0037	0.094	0.0064	0.1168	30.7	11.6
150X150	0.0026	0.066	0.0041	0.1041	37.4	7.1
160X160	0.0025	0.0635	0.0038	0.0965	36.4	5.94
180X180	0.0023	0.0584	0.0033	0.0838	34.7	6.7
200X200	0.0021	0.0533	0.0029	0.0737	33.6	6.2
250X250	0.0016	0.0406	0.0024	0.061	36	4.4
270X270	0.0016	0.0406	0.0021	0.0533	32.2	4.7
300X300	0.0051	0.0381	0.0018	0.0457	29.7	3.04
325X325	0.0014	0.0356	0.0017	0.0432	30	4.4
400X400	0.001	0.0254	0.0015	0.37	36	3.3
500X500	0.001	0.0254	0.001	0.0254	25	3.8
635X635	0.0008	0.0203	0.0008	0.0203	25	2.63
