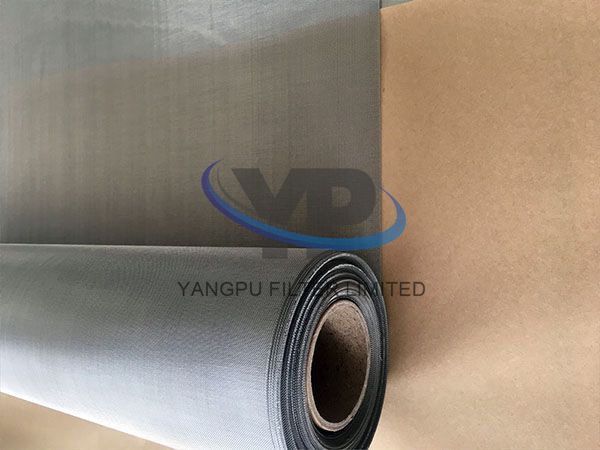

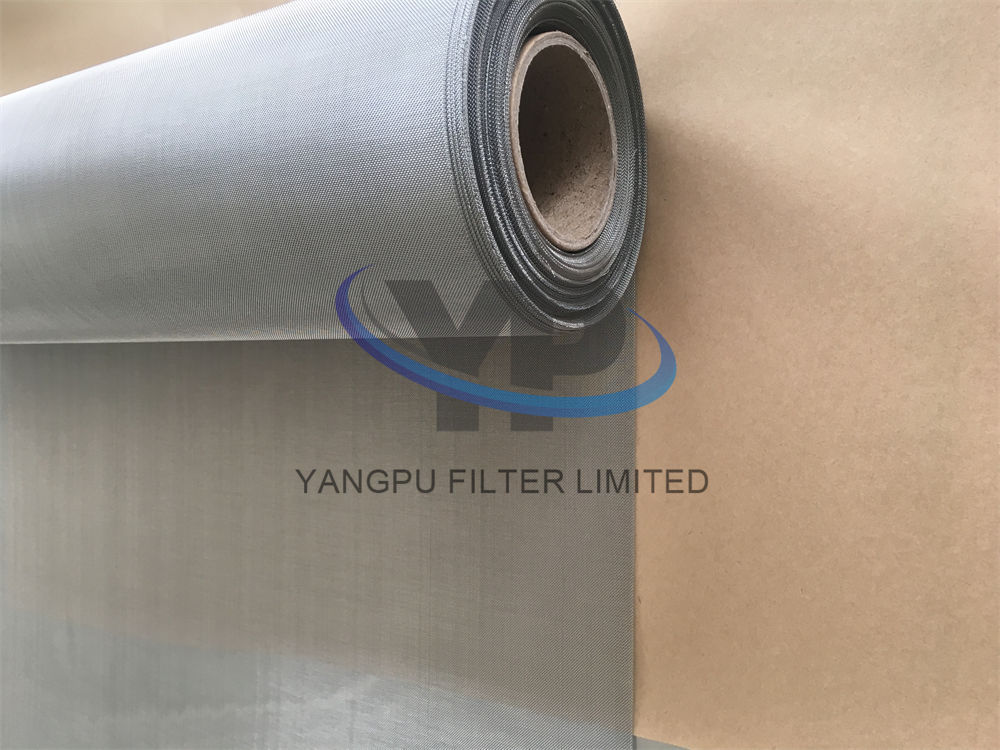

Wire mesh

Wire mesh

Wire mesh

Send Inquiry

Product Introduction

Stainless steel wire screen SPEC

Meshes perLinear inch	Wire diameter		Width of opening		Open area
Meshes perLinear inch	inch	mm	inch	mm	percent
1×1	.157	4.0	.84	21.4	71.0
2×2	.118	2.5	.38	10.2	64.0
3×3	.079	2.0	.25	6.4	58.0
4×4	.063	1.6	.187	4.75	56.0
4×4	.047	1.19	.203	5.16	65.9
5×5	.055	1.4	.14	3.68	52.0
6×6	.047	1.2	.12	3.03	51.0
8×8	0.43	1.1	.08	2.08	42.0
10×10	.039	1.0	.06	1.54	36.0
10×10	.020	.51	.080	2.03	64.0
12×12	.023	.584	.060	1.52	51.8
12×12	.020	.508	.063	1.60	57.2
14×14	.023	.584	.048	1.22	45.2
14×14	.020	.508	.051	1.30	51.0
16×16	.018	.457	.0445	1.13	50.7
18×18	.017	.432	.0386	.98	48.3
20×20	.020	.508	.0300	.76	36.0
20×20	.016	.406	.0340	.86	46.2
24×24	.014	.356	.0277	.70	44.2
30×30	.013	.330	.0203	.52	37.1
30×30	.012	.305	.0213	.54	40.8
30×30	.009	.229	.0243	.62	53.1
35×35	.011	.279	.0176	.45	37.9
40×40	.010	.254	.0150	.38	36.0
50×50	.009	.229	.0110	.28	30.3
50×50	.008	.203	.0120	.31	36.0
60×60	.0075	.191	.0092	.23	30.5
60×60	.007	.178	.0097	.25	33.9
70×70	.0065	.165	.0078	.20	29.8
80×80	.0065	.165	.0060	.15	23.0
80×80	.0055	.140	.0070	.18	31.4
90×90	.005	.127	.0061	.16	30.1
100×100	.0045	.114	.0055	.14	30.3
100×100	.004	.102	.0060	.15	36.0
100×100	.0035	.089	.0065	.17	42.3
110×110	.0040	.1016	.0051	.1295	30.7
120×120	.0037	.0940	.0046	.1168	30.7
150×150	.0026	.0060	.0041	.1041	37.4
160×160	.0025	.0635	.0038	.0965	36.4
180×180	.0023	.0584	.0033	.0838	34.7
200×200	.0021	.0533	.0029	.0737	33.6
250×250	.0016	.0406	.0024	.0610	36.0
270×270	.0016	.0406	.0021	.0533	32.2
300×300	.0015	.0381	.0018	.0457	29.7
325×325	.0014	.0356	.0017	.0432	30.0
400×400	.0010	.0254	.0015	.0370	36.0
500×500	.0010	.0254	.0010	.0254	25.0
635×635	.0008	.0203	.0008	.0203	25.0
